Box Camera Features

• Not recommended for new designs, updated version currently in process

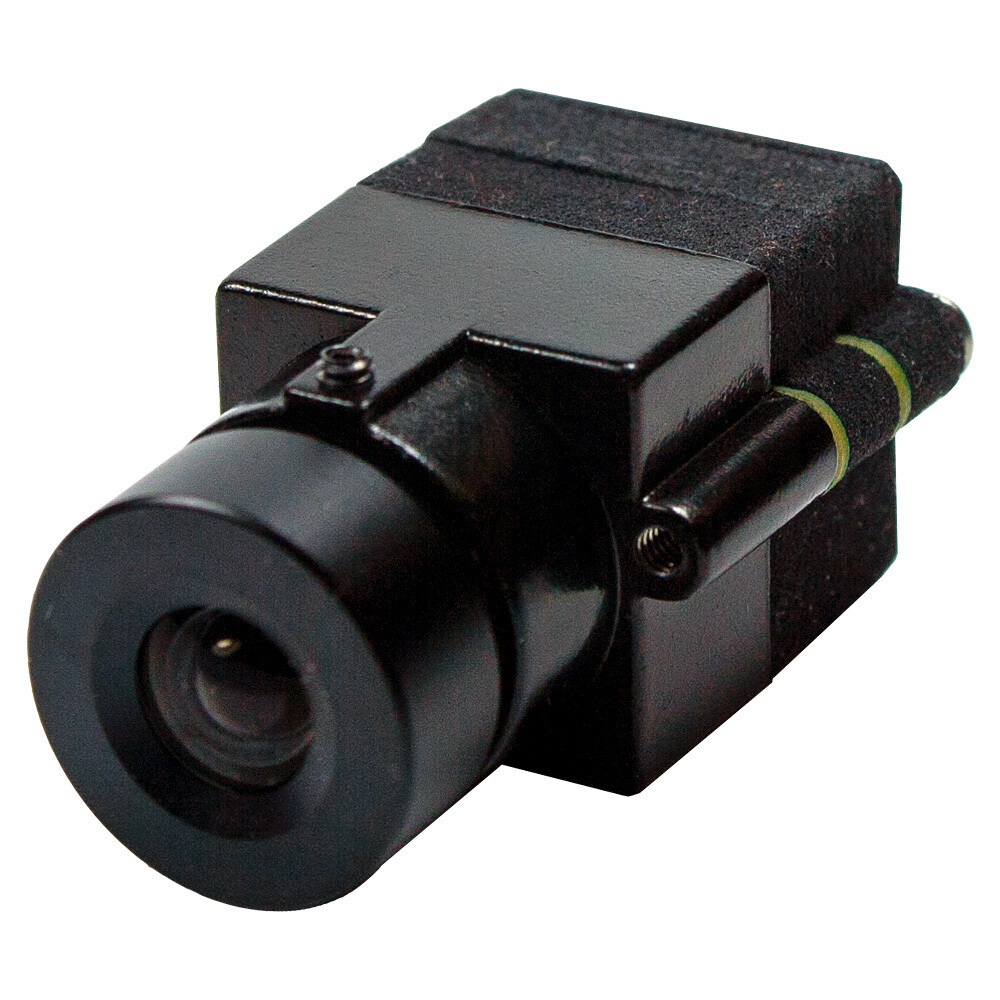

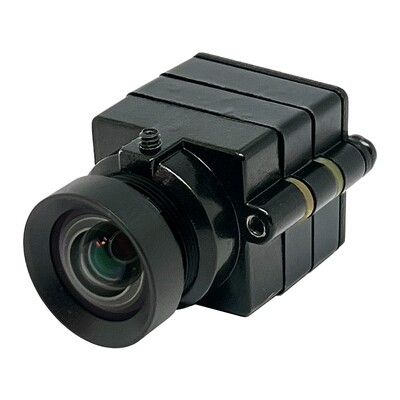

• 17mm x 17mm housed camera

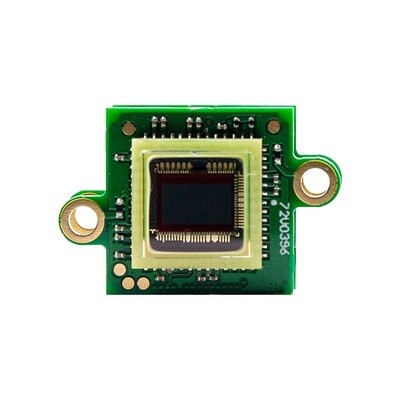

• Low power 1/3" CMOS color sensor
• 1080p @30pfs/60Hz or 25fps/50Hz
• Please specify in model ordering
  • T- TVI coaxial output to 500m (1,600ft)
  • A- AHD coaxial output to 500m (1,600ft)
• Computer controllable via I²C
• Wide input voltage 4-16V
• Lens mount compatibility
  • Pinhole mount
  • M-12 mount
