Board Level Features

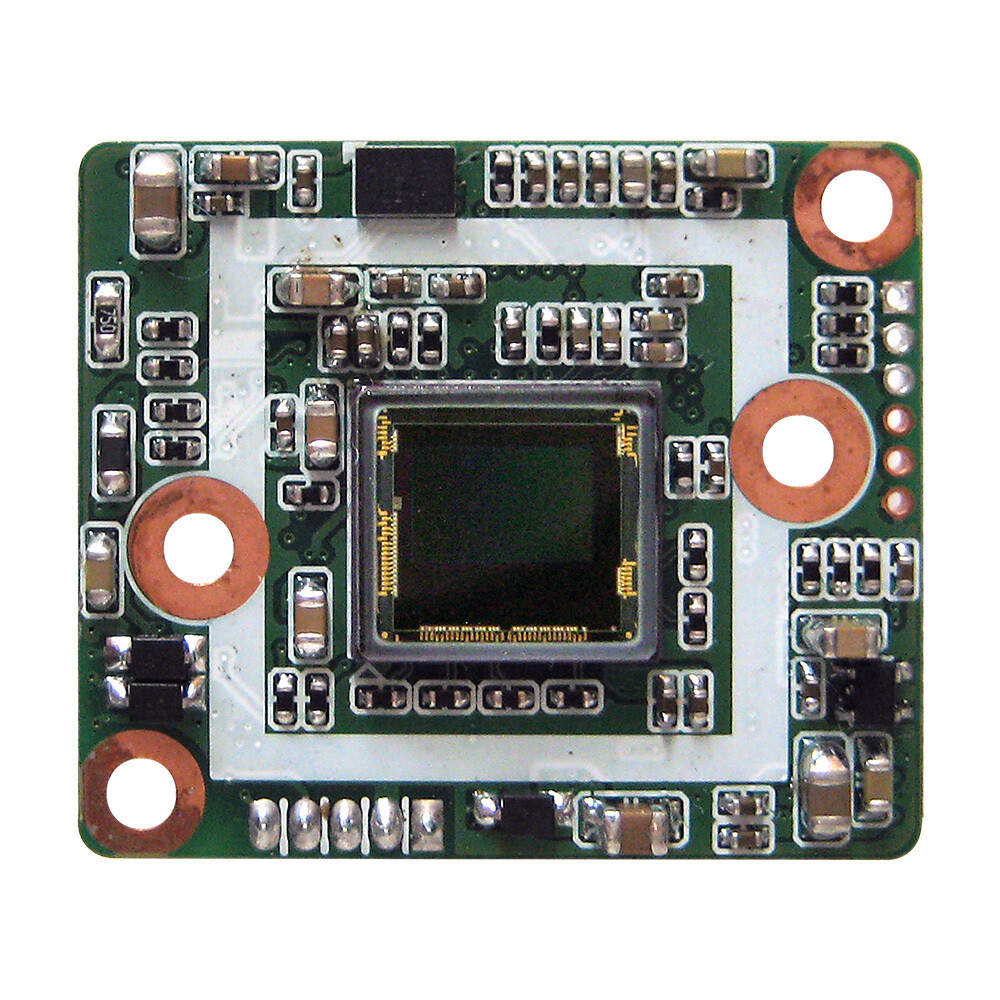

• 1/3" 2MP Image Sensor
• 1080p 30/ 25fps
• Optical zoom equivalency is achieved to @2.7x magnification as you reduce from a 2 MP resolution image down to full screen VGA resolution
• Digital Zoom up to 33x
• Real Time True WDR
• VISCA control via RS-485
• Extended SDI
• Transmissions to 500m (1650ft)
• Full HD digital format using standard cabling - coax, cat5/6
• Latency <1 fps.
• HD-SDI, CVBS analog displayed in 16:9 or Native 4:3

Documentation

Data Sheet

Application Note

I²C Instructions

VISCA Instructions

Keyboard Instructions

Lenses

---

Software

VISCA Controller

VISCA Command Set
