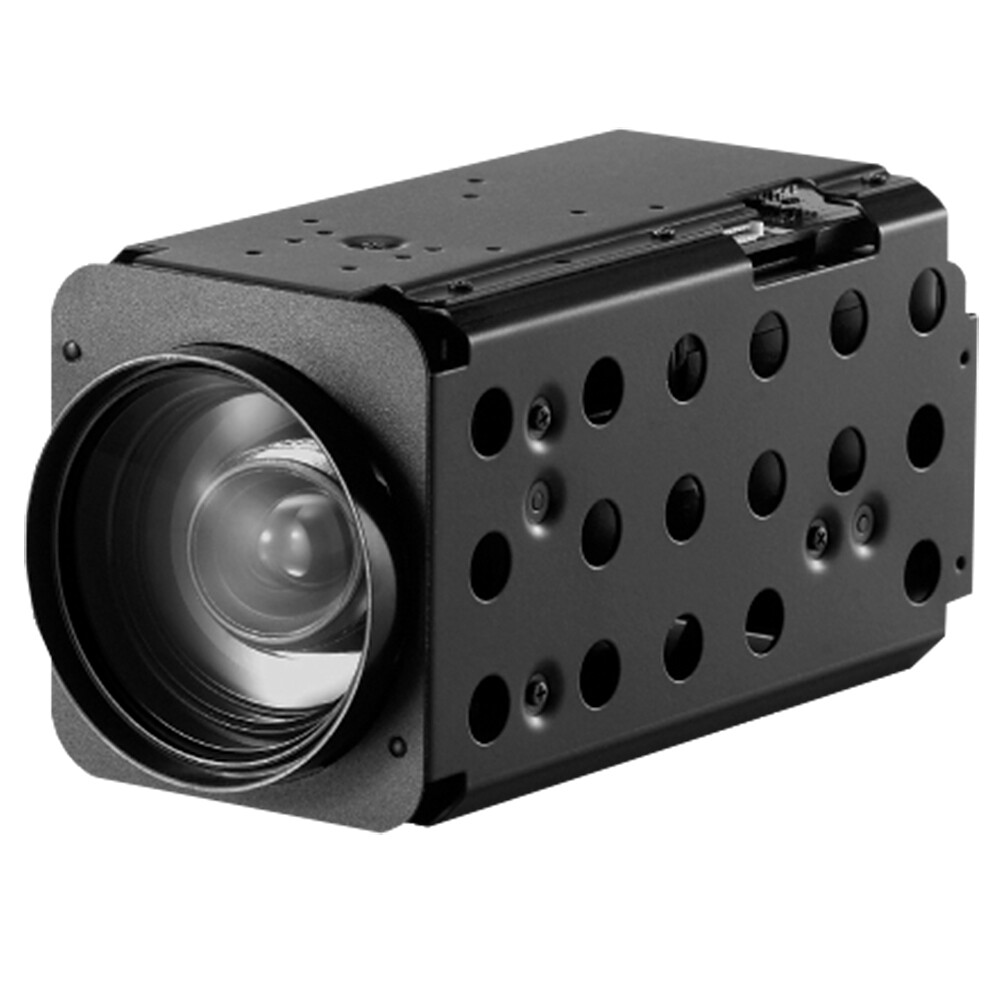

Zoom Block Features

• 1/2.3" Sony Global Shutter IMX392LQR-C CMOS sensor
• External trigger input and strobe output
• Shutter speeds (Ext.-Trigger) to 50μs
  • 1/30 (NTSC), 1/25 (PAL) - 1/20,000 sec.
• 1080p/720p@60fps/50fps/30fps/25fps
• 36x Optical Zoom (6mm-216mm), 32x Digital Zoom
• Digital Image Stabilization (DIS)
• HLC/BLC
• Transmission ranges to 700M
• LVDS, EX-SDI V1.0 & V2.0 and CVBS analog video output
• VISCA, PELCO-D, PELCO-P

Documentation

Data Sheet

User Guide

---

Software

VISCA Controller

VISCA Command Set
