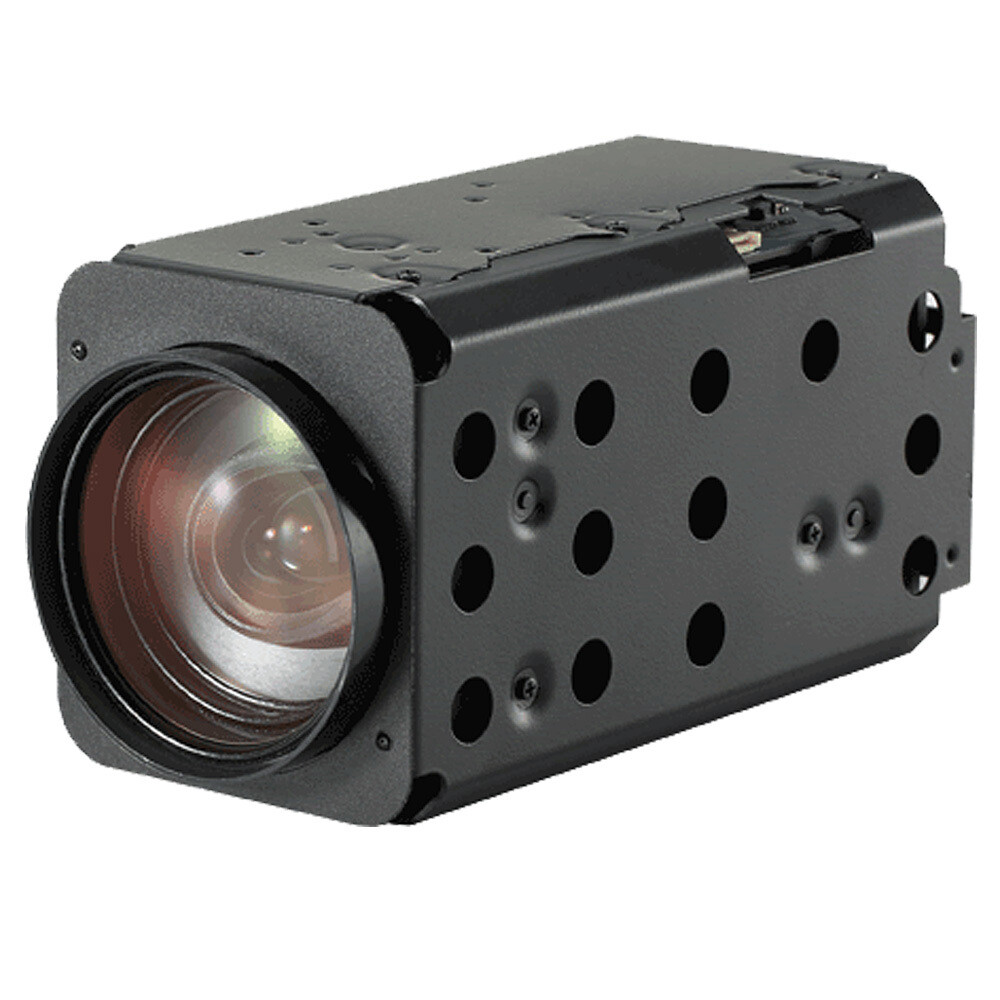

Zoom Block Features

• 2.1MP Sony 1/2" Image Sensor
• Superior Color Sensitivity to <0.037 Lux
• 1080p/720p@60fps/50fps/30fps/25fps, 1080i 60/50fps
• 36x Optical Zoom, 32x Digital Zoom
• Real Time True WDR @ 100dB
• Digital Noise Reduction
• Extended SDI
  • Transmissions to 500m (1650 ft)
  • Full HD digital format using standard cabling - coax, cat5/6
  • Latency <1 fps.
  • Power & control over same cable
• LVDS, EX-SDI and CVBS analog video output
• HD-SDI requires an add-on converter (model 60TR000X)

Documentation

Data Sheet

User Guide

---

Software

VISCA Controller

VISCA Command Set
