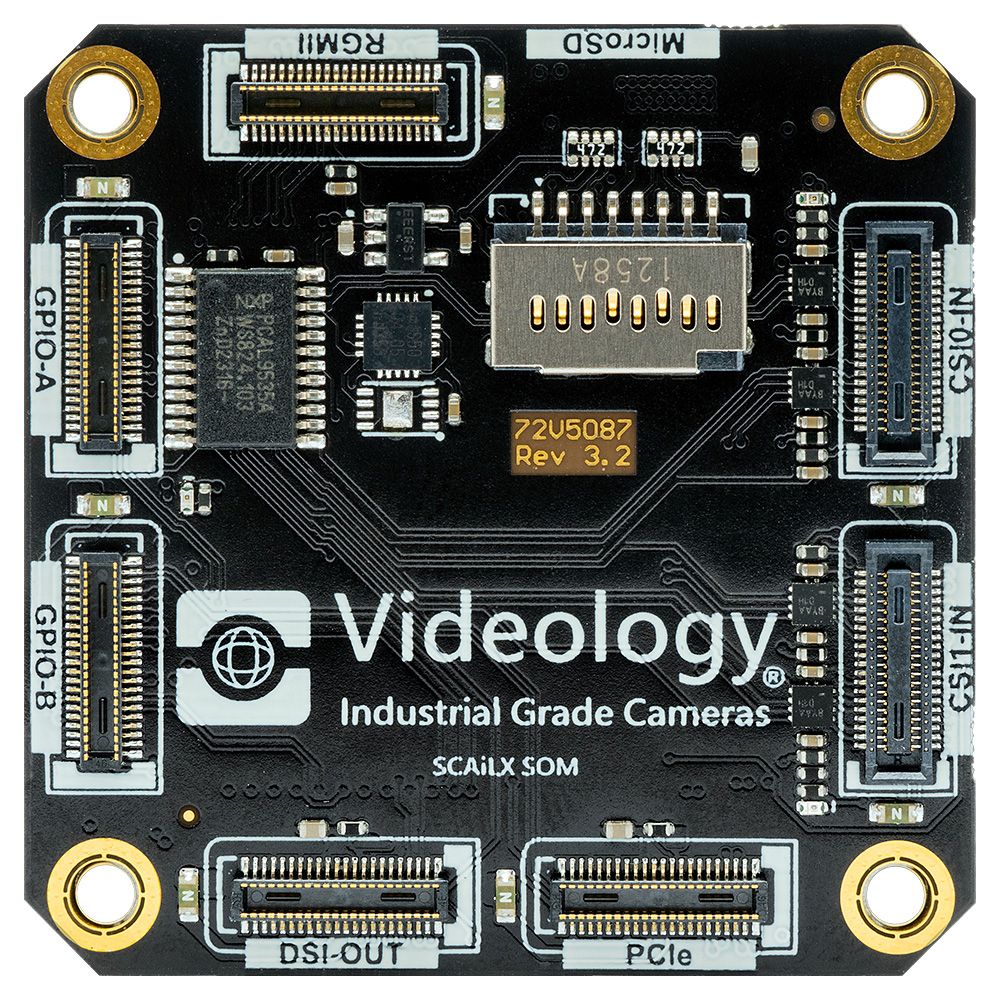

i.MX8M Plus Edge AI Modular Platform

42x42 mm universal SOM board for Edge vision AI

• NXP I.MX 8M Plus 1.6 GHz
• Neural Processor Unit (NPU)
• 2.3 TOPS
• 2GB LPDDR4 RAM
• 8GB eMMC flash
• 2x MIPI-CSI, 2x 1080p@60 max.
• Hardened H.264/H.265 ENC/DEC
• Connectivity:
  • Multiple GPIO, UART, I2C, SPI, USB2.0, USB3.0
  • RGMII 10/100/1000 Mbps
  • DSI-CSI display port
  • PCIe 1-lane
• Interfacing with FlexPCB to other SCAiLX boards
• 42x42 mm w/ 3mm spacers
• Support LVDS block cameras*:
  • Sony
  • Tamron
  • Videology
• Supported MIPI cameras*:
  • 2 MP Global Shutter
  • 8 MP Rolling shutter
  • 5 MP Autofocus
  • Onsemi ISP based cameras
• microSD card holder
• Real Time Clock w/ battery
• Software
  • Embedded Linux
  • Yocto Development Environment
  • Docker application support
  • Remote software updatable
  • AI demo applications

* Please check the latest list of supported cameras/sensors
