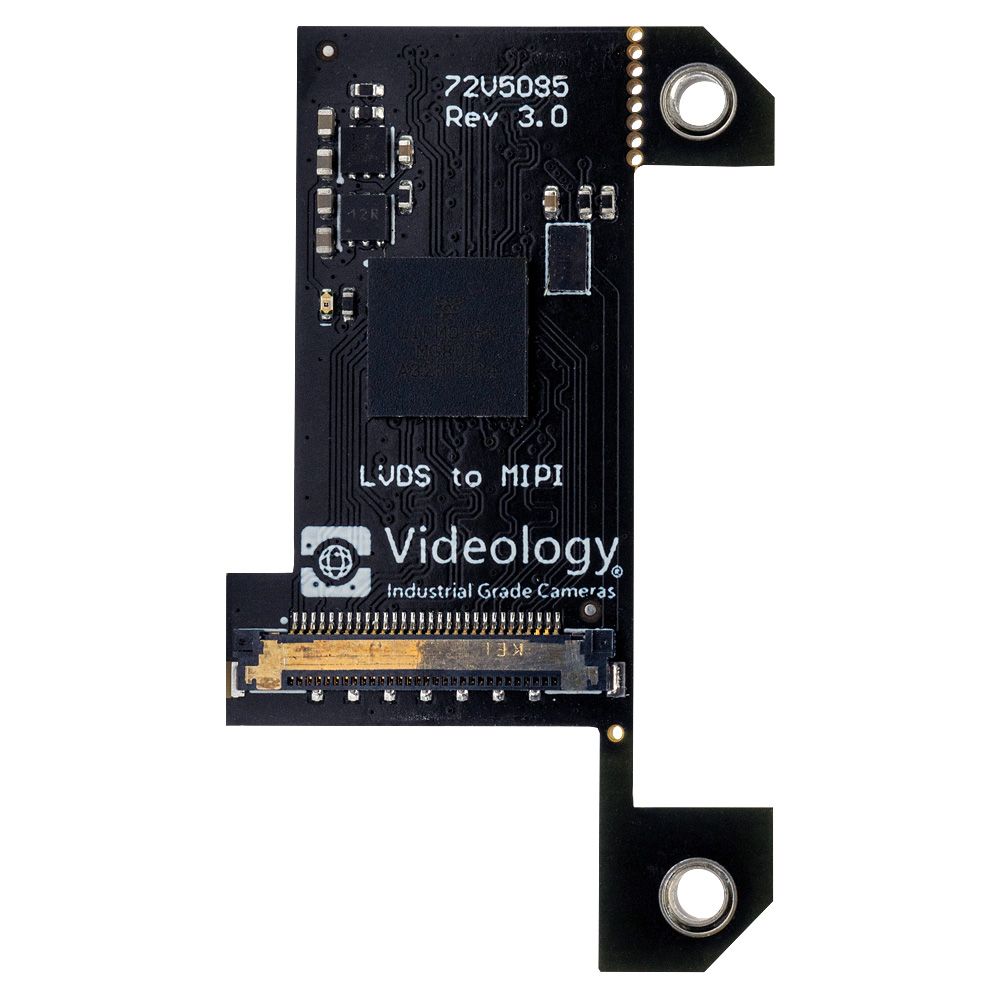

SCAiLX Single or Double Channel LVDS to MIPI Interface Board
SKU SCAILX-LVDS-2-MIPI
Product Details
i.MX8M Plus Edge AI Modular Platform
Single/Double channel LVDS to MIPI interface board
- Supported resolutions*:
- 720p @ 25/30 fps
- 720p @ 50/60 fps
- 1080p @ 25/30 fps
- 1080p @ 50/60 fps
- KEL micro coaxial connect to block camera
- Firmware download via SCAILX-SOM-AI
- Supported LVDS block cameras*:
- Sony FCB* (not limited to):
- FCB-9520L
- Tamron* (not limited to):
- MP3010M-EV
- Videology* Zoom Block Cameras :
- 10x Autofocus Zoom Block Camera with LVDS - 24Z2.1W-10X-LVDS-462
- 20x Autofocus Zoom Block Camera with LVDS - 24Z2.1W-20X-LVDS
- 30x Autofocus Zoom Block Camera with LVDS - 24Z2.1WS-30X-LVDS-385
- 40x Autofocus Zoom Block Camera with LVDS - 24Z2.1W-40X
- 55x Autofocus Zoom Block Camera with LVDS - 24Z2.1W-55X
- Sony FCB* (not limited to):
* ask for availability or check list of supported cameras
SCAiLX Single or Double Channel LVDS to MIPI Interface Board
