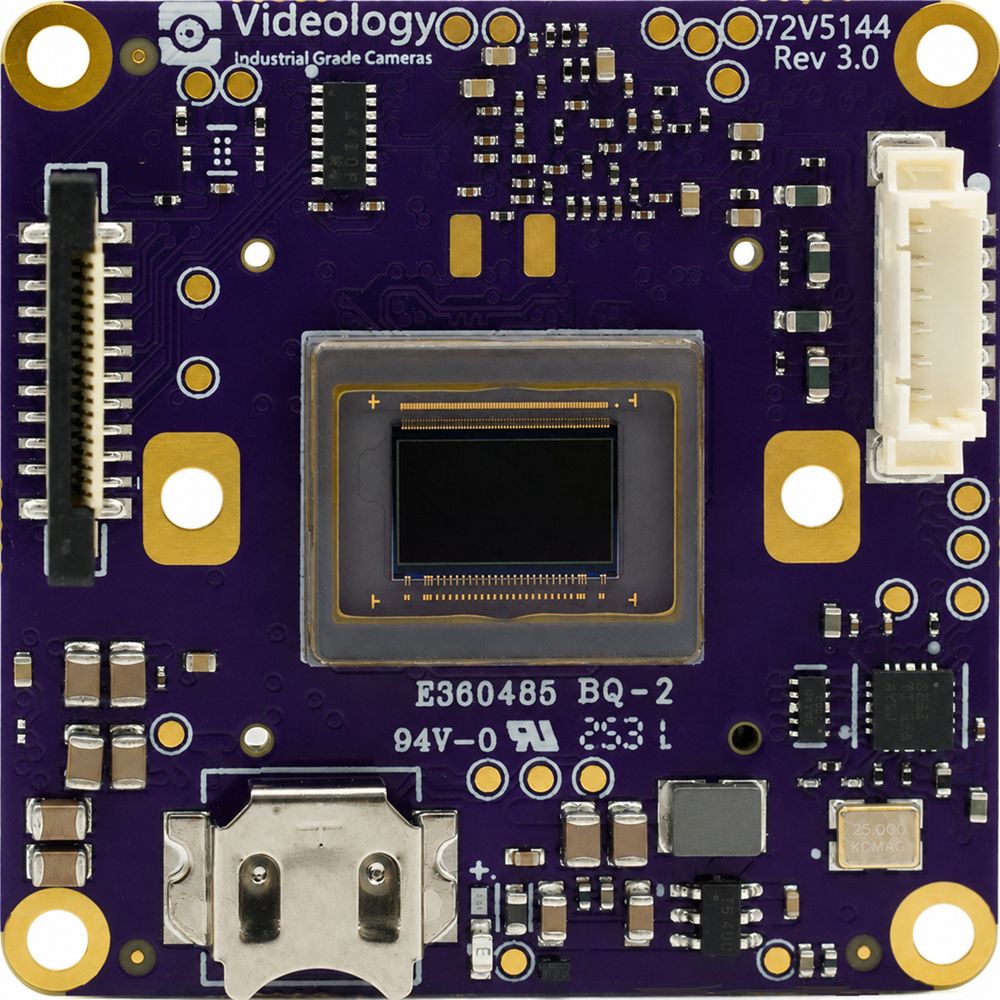

The 801-IP-678 is a compact 38 × 38 mm, 4K (8 MP) board-level IP camera designed for integration into OEM imaging systems. Built around the Sony STARVIS 2™ IMX678 sensor, it combines high-resolution image capture with onboard video encoding, configurable IP streaming, API support and GPIO connectivity. Optional PoE, integrated Ethernet magnetics, microSD support and flexible network configuration provide additional options for embedded system integration.

---

Key Features

8 MP Sony STARVIS 2™ IMX678 image sensor
Up to 3840 × 2160 resolution at 30 fps
HTTP API support for application integration
GPIO connectivity for embedded system integration

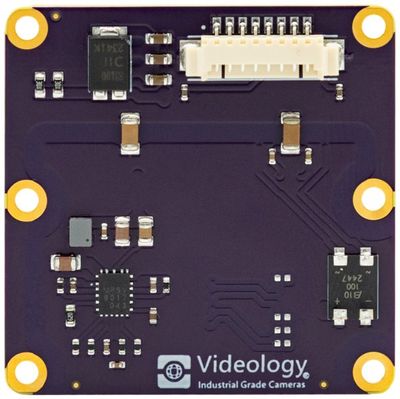

Optional PoE
DHCP or static IP network configuration
H.265, H.264 and MJPEG video encoding
Up to three configurable video streams
NDAA Section 889 compliant
ONVIF Profile S compliant

Recommended Lenses

• 3.5mm Focal Length, f/2.2 Aperture, 8 Megapixel Resolution, IR Filter for Visible Light, M12 mount (M12-035-F22-8-VS)
• 5.5mm Focal Length, f/2.4 Aperture, 12 Megapixel Resolution, IR Filter for Visible Light, M12 mount (M12-055-F24-12-VS)

---

Documentation

Disclaimer: While Videology makes reasonable efforts to maintain current CAD models, STEP files available on this website may not reflect the latest product revision. Users must confirm all dimensions and specifications with the Videology Support and Engineering teams before use.

---

Software

801-IP-678 Firmware Version 5.1.7 | Released: August 31, 2026
